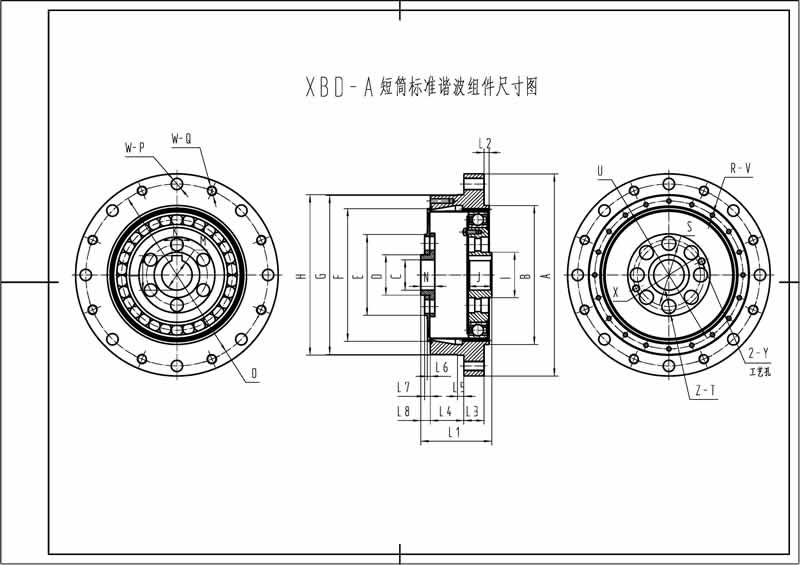

| XBD-A短筒标准谐波组件尺寸表 |
| 机型 |
A |
B(h7) |
C |
D(h7) |
E |
F(h7) |
G |
H(h7) |
I |
J |
K |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
M(H7) |
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
Y |
Z |
| 32 |
φ73 |
φ38 |
φ6 |
φ9 |
φ20 |
φ41.8 |
φ55 |
φ56 |
φ15 |
11 |
3 |
11.4 |
31.6 |
2 |
7 |
10.5 |
3.5 |
2.3 |
4 |
7.1 |
φ10 |
8 |
φ65 |
φ4.5 |
M4 |
8 |
φ14.5 |
φ3.5 |
φ49 |
M3深10 |
6 |
φ15.5 |
M3 |
6 |
| 40 |
φ79 |
φ48 |
φ7 |
φ10 |
φ25 |
φ49 |
φ62 |
φ63 |
φ20 |
13 |
4 |
13.8 |
35.5 |
2 |
8 |
12.5 |
4 |
2.3 |
4 |
7 |
φ12 |
8 |
φ71 |
φ4.5 |
M4 |
10 |
φ17.5 |
φ4.5 |
φ56 |
M3深10 |
6 |
φ19 |
M3 |
6 |
| 48.2 |
φ93 |
φ56 |
φ10 |
φ14 |
φ32 |
φ56.5 |
φ70 |
φ72 |
φ24 |
13.5 |
5 |
16.3 |
36.5 |
3 |
10 |
11.5 |
5 |
2.3 |
4.5 |
7.5 |
φ14 |
9 |
φ82 |
φ5.5 |
M5 |
12 |
φ24 |
φ5.5 |
φ64 |
M3深13 |
6 |
φ27 |
M3 |
8 |
| 50 |
| 60 |
φ107 |
φ70 |
φ16 |
φ20 |
φ40 |
φ67 |
φ85 |
φ86 |
φ28 |
13 |
6 |
20.8 |
40 |
3 |
10 |
17.5 |
5 |
1.8 |
3.5 |
6.5 |
φ18 |
10 |
φ96 |
φ5.5 |
M5 |
16 |
φ30 |
φ6.5 |
φ79 |
M3深12 |
8 |
φ34 |
M4 |
8 |
| 80 |
φ138 |
φ90 |
φ22 |
φ26 |
φ52 |
φ90 |
φ112 |
φ113 |
φ28 |
15.5 |
6 |
20.8 |
47 |
3 |
12 |
22.5 |
5 |
2.8 |
4.5 |
7.5 |
φ18 |
11.2 |
φ125 |
φ6.6 |
M6 |
16 |
φ40 |
φ9 |
φ104 |
M4深15 |
12 |
φ45 |
M5 |
8 |
| 100 |
φ160 |
φ110 |
φ24 |
φ32 |
φ64 |
φ105 |
φ126 |
φ127 |
φ36 |
18.5 |
8 |
27.3 |
56 |
4 |
16 |
26.5 |
5 |
2.3 |
4.5 |
7.5 |
φ24 |
11 |
φ144 |
φ9 |
M8 |
20 |
φ50 |
φ11 |
φ117 |
M4深15 |
8 |
φ56 |
M6 |
8 |
| 120 |
φ190 |
φ140 |
φ32 |
φ40 |
φ80 |
φ131.6 |
φ157 |
φ158 |
φ36 |
21 |
8 |
27.3 |
68 |
4 |
16 |
38 |
6 |
2.8 |
5 |
9 |
φ24 |
16 |
φ174 |
φ9 |
M8 |
16 |
φ60 |
φ15.5 |
φ147 |
M5深12 |
12 |
φ68 |
M8 |
8 |
| 160 |
φ260 |
φ177 |
φ44 |
φ52 |
φ104 |
φ176 |
φ210 |
φ212 |
φ56 |
27.5 |
12 |
43.3 |
87 |
5 |
24 |
45.5 |
6 |
3.8 |
7 |
11 |
φ40 |
19.5 |
φ236 |
φ14 |
M12 |
20 |
φ80 |
φ18 |
φ198 |
M6深20 |
12 |
φ90 |
M8 |
8 |
|
